KF Dual View PTZ WiFi Linkage Camera BP3

V380 Dual View PTZ WiFi Linkage Camera BP3

Dual-Lens Monitoring · Linked Views · WiFi Connectivity · Smart All-Around Security

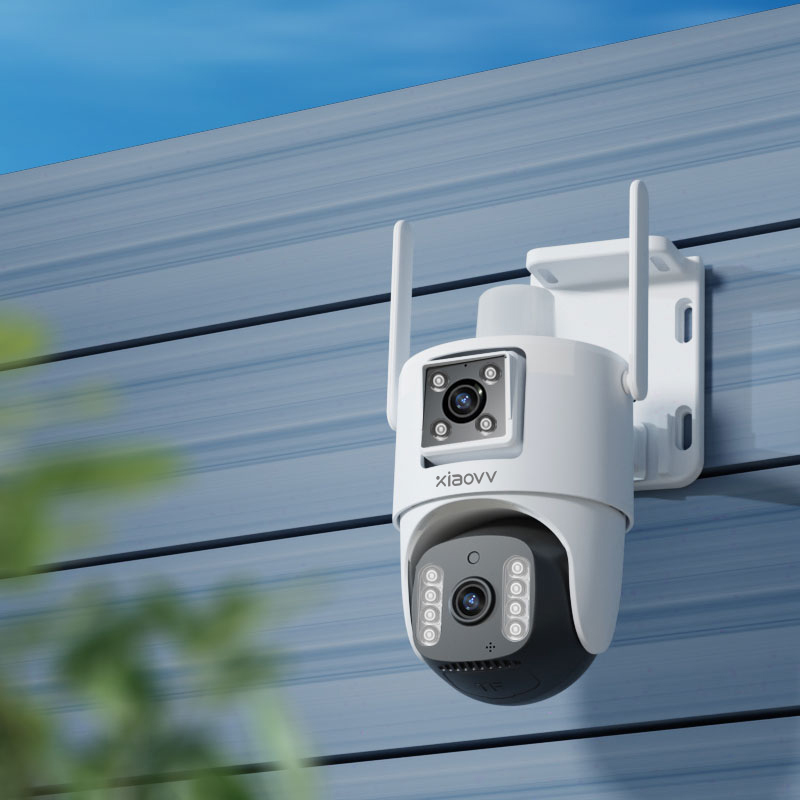

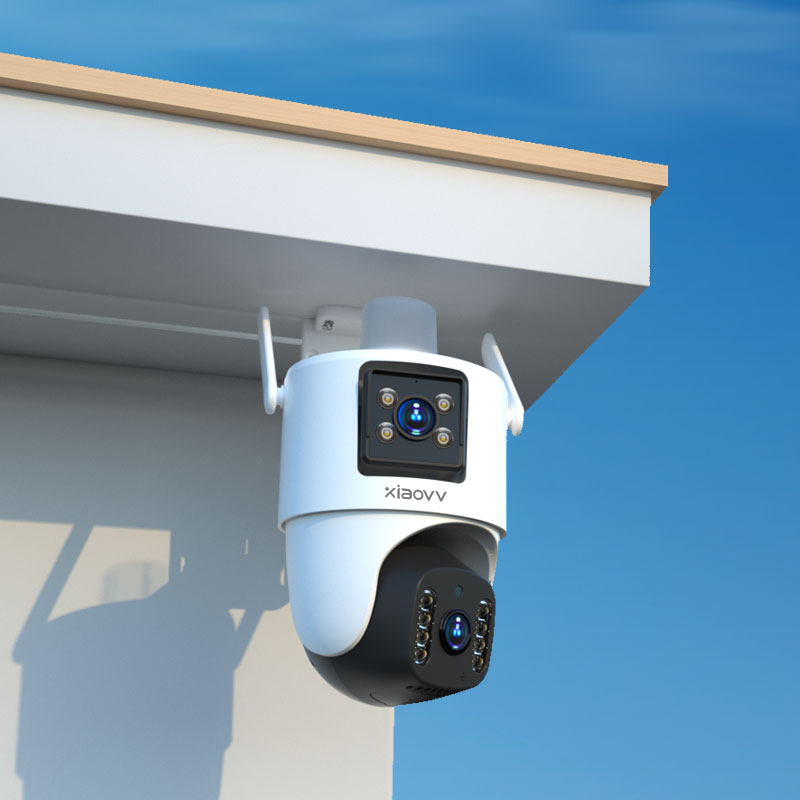

The V380 BP3 is a dual-view PTZ WiFi security camera designed for linked monitoring scenarios. With an upper fixed lens and a lower PTZ lens working together, it provides synchronized dual-view surveillance, enabling both wide-area monitoring and flexible tracking of key areas. It is ideal for homes, shops, offices, and warehouses.

Equipped with a 1/2.9” Progressive Scan CMOS sensor, the camera forms a dual-lens imaging system (2MP + 2MP). The main video stream supports up to 1920×2160 resolution, delivering clear and detailed images. A 4.0mm fixed lens with a 110° field of view ensures broad coverage.

The PTZ function supports 355° horizontal rotation and 90° vertical tilt, allowing users to remotely control the camera via mobile devices and significantly reduce blind spots. One camera can effectively cover a large area.

An ICR infrared-cut filter combined with infrared LEDs and white light LEDs enables intelligent switching between infrared night vision and full-color night vision. The night viewing distance reaches 10–15 meters, depending on environmental conditions. Advanced image processing technologies such as Digital WDR, strong light suppression, and 3D noise reduction ensure stable image quality under various lighting conditions.

For intelligent monitoring, the camera supports motion detection and humanoid detection, reducing false alarms and providing timely alerts. A built-in microphone and speaker enable two-way audio communication for real-time interaction or remote warnings.

The BP3 supports 2.4GHz WiFi connectivity (IEEE 802.11 b/g/n) for easy installation. Using H.265 video compression, it reduces bandwidth and storage usage while maintaining high image quality. It supports local storage via Micro SD card up to 128GB as well as cloud storage services.

With reliable construction and an operating temperature range of -10°C to 50°C, the V380 BP3 is a cost-effective and versatile WiFi security solution combining dual-view monitoring, PTZ control, and intelligent detection.
