Energy-Saving Insulated Glass (6mm Clear+9A+6mm Clear)

Product Description

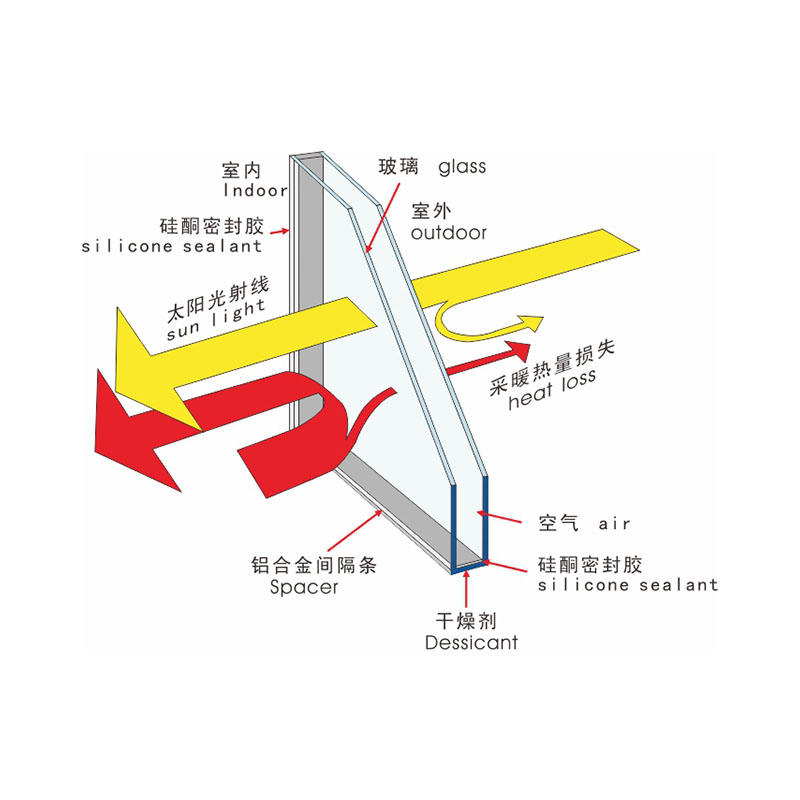

This insulated glass is a high-performance deep-processed glass product designed for energy efficiency and comfort. It consists of two 6mm clear glass panels, separated by a 9A (9mm) air layer using a spacing frame, and hermetically sealed with sealant to create a dry gas-filled space between the glass layers. Internationally recognized as "heat insulation glass" for its outstanding thermal insulation, it effectively reduces heat transfer between the interior and exterior of a space—making it a top choice for both residential and commercial buildings. Beyond thermal efficiency, it also delivers strong sound insulation, anti-condensation, and enhanced wind pressure resistance, providing a comfortable, quiet, and safe living or working environment while lowering energy consumption for heating and cooling.

Key Features

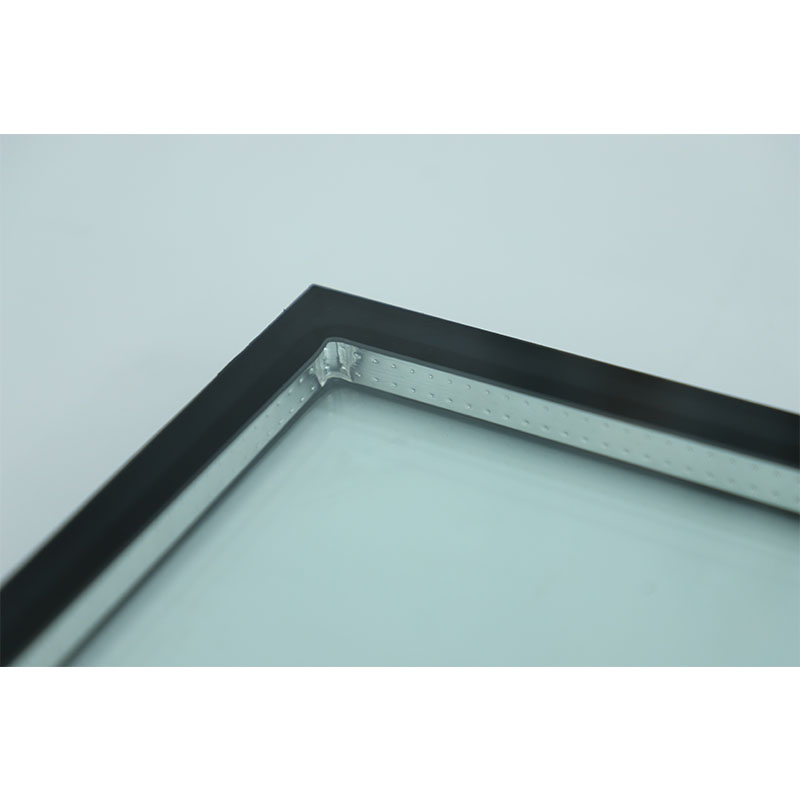

• Optimized insulated structure – 6mm Clear+9A (9mm air layer)+6mm Clear combination, hermetically sealed with sealant to maintain a dry internal gas space, ensuring long-term thermal insulation performance

• Excellent heat insulation – minimizes heat transfer via radiation, convection, and conduction, reducing energy loss from heating or cooling systems and cutting down on energy costs

• Superior sound insulation – the air layer separates the two glass panels into independent rigid bodies, interrupting and absorbing sound wave transmission, significantly reducing external noise interference (ideal for buildings near roads, airports, or busy commercial areas)

• Anti-condensation performance – the dry internal gas prevents condensation from forming inside the glass layer even when temperatures drop; it also raises the dew point on the outer surface, keeping the glass clear and maintaining visibility

• Enhanced safety & wind resistance – with the same original glass thickness, its wind pressure resistance is 1.5 times that of ordinary single-pane glass, providing more reliable protection against strong winds

• Versatile customization – supports original glass thicknesses of 3/4/5/6/8/10/12mm and air layer thicknesses of 6/9/12mm, adapting to diverse project needs (residential windows, commercial curtain walls, skylights, etc.)

Specifications

• Product type: Insulated glass (heat insulation glass)

• Glass combination: 6mm Clear + 9A (9mm air layer) + 6mm Clear

• Regular dimension: 2440mm * 3660mm

• Maximum processing specification: 3300mm * 8000mm (Width * Height)

• Customizable parameters:

• Core structure: Two or more glass panels + spacing frame + sealant (forming dry internal gas space)

• Key properties:



• Application scenarios: Residential windows & doors, commercial building curtain walls, skylights, glass partitions, hotel lobbies, office exteriors, and other spaces requiring energy efficiency and noise reduction
